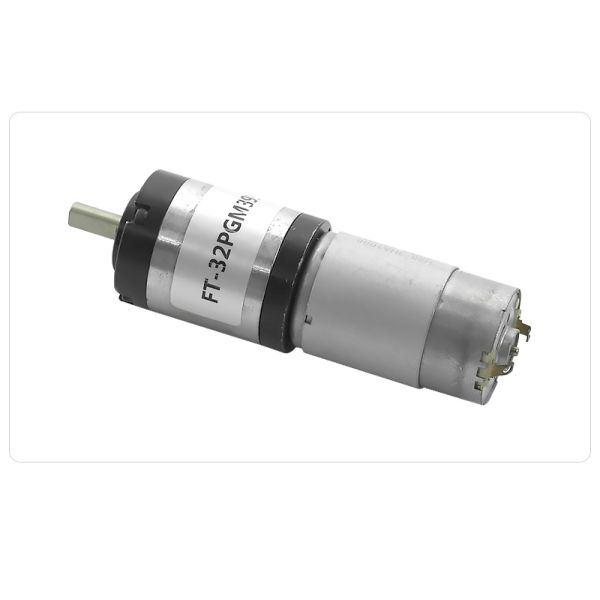

Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot

Name: Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot
Brand: FUTENG
Price: 1 USD

Buy cheap Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot product

Model Number : FT-32PGM395

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Delivery Time : 15-30 days/Negotiable

Packaging Details : Standard Export Carton & Customzied

Continuous Current(A) : about 430mA-2500mA

Efficiency : 65%-90%

Speed(RPM) : 1rpm-200rpm

Commutation : Brush

Construction : Permanent Magnet

Torque : 1-60kgf.cm, 80/95/100/90(g.cm)

Type : Gear Motor

Usage : Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

Geared motor model : FT-32PGM395

Voltage : 1-24V

Rotating speed : 7500/6000/10000(rpm)

Current : 400/180/80/100(mA)

Output : 15/10.2/10.32/12.96(w)

Contact Now

Custom 12V 24v DC Planetary Gear Motor for Solar Panel Brush Cleaning Robot

Custom 12V 24v Planetary DC Geared Motor For Solar Panel Brush Cleaning Robot

FT MOTOR

FT MOTOR Geared motor model: FT-32PGM395 Gearbox diameter: Ø32mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

Gearbox Data:
Gear stage	1	2	3	4
Reduction ratio (K)	3.7,5.2	14,19,27	51,71,100,139	189,264,369,515,721
Gear box length L(mm)	25.5	35.5	41.5	49.5
Rated torque (kg·cm)	3	6	9	17
Instant torque (kg·cm)	6	10	20	35
Gearbox efficiency (%)	90%	81%	73%	65%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-395	6	10000	400	8400	2500	15	80	8800	430
FT-395	12	6000	180	5000	850	10.2	95	2700	560
FT-395	24	6000	80	5000	430	10.32	100	1500	560
FT-395	24	7500	100	6300	540	12.96	90	1800	600
